Long shaft machining becomes difficult when a part passes diameter inspection but still shows excessive runout, bow, taper, vibration, or assembly misalignment. The cause may begin in the raw material, appear during stock removal, develop after heat treatment, or result from an inspection setup that does not reproduce the drawing datum. For shafts approaching four meters, material condition, workholding, machining sequence, grinding, inspection, and packaging must form one controlled process.

Long Shaft Machining Runout: Diagnose the Pattern First

Runout is commonly checked by rotating the shaft through 360 degrees and comparing the indicator’s maximum and minimum readings at a specified position. The result is meaningful only when the datum, support method, gauge position, and permitted value are defined.

This identifies whether the next review should focus on material, setup, grinding, or measurement.

Why Long Shafts Develop Runout, Taper, and Straightness Errors

Material Straightness, Residual Stress, and Heat-Treatment Distortion

A long bar may contain initial bow or uneven residual stress. Heavy material removal can release that stress and move a shaft that appeared straight during roughing. Thin sections, keyways, and large diameter changes increase the risk.

For parts requiring substantial stock removal or heat treatment, a staged route may be safer than machining directly to final size. Rough turning establishes the geometry, followed by a stability or heat-treatment step when specified, another straightness check, and finish machining. Remaining allowance should be distributed so final turning or grinding does not need to correct most of the error from one side.

The RFQ should identify material grade, supply condition, heat treatment, hardness, and incoming straightness requirements.

Cutting Force, Unsupported Length, Clamping, and Heat

A slender shaft deflects under radial cutting force. As unsupported length increases, the tool may push the workpiece away, causing taper, barrel shape, chatter, or inconsistent diameter. Excessive chuck, tailstock, or steady-rest pressure can also bend the shaft before cutting.

Lower cutting force, short tool overhang, staged passes, controlled support, and temperature management reduce risk. A strategy that works on a rigid section may fail at the smallest diameter. Buyers should ask how the supplier will support that section, manage tool wear and thermal growth, and perform in-process checks.

Choosing the Right Setup for Long Shaft Turning

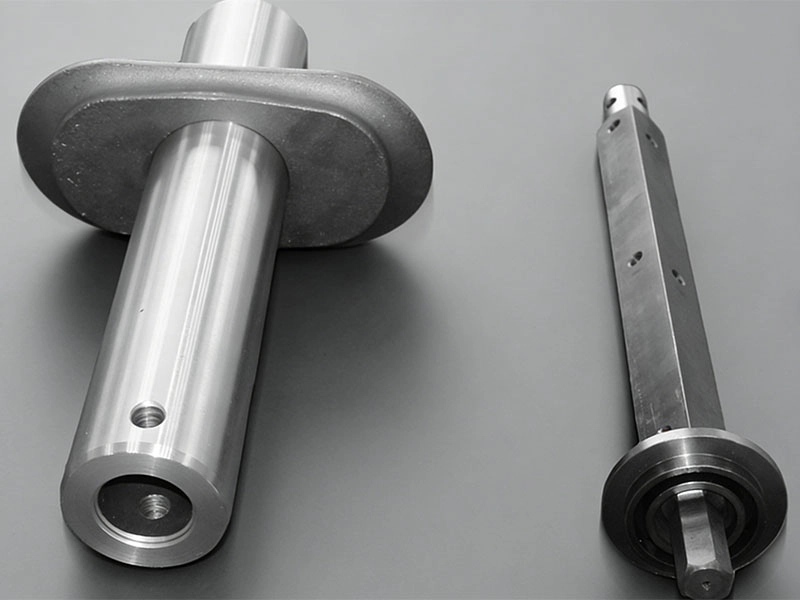

The setup should reflect shaft length, diameter, weight, material, critical datums, and permitted runout. Buyers can review CK Metal Tech’s long shaft CNC machining and grinding capabilities before submitting a drawing.

Between-Centers Turning and Tailstock Alignment

Turning between centers can preserve one rotational axis through several operations when center holes remain available as process datums. It is useful when multiple journals must relate to the same axis, although end geometry, weight, or feature access may require another setup.

Center holes must be prepared and protected because inconsistent seating transfers into runout. Tailstock alignment and thrust also matter: insufficient support permits movement, while excessive force may bow a slender shaft. The supplier should check initial indicator readings, explain how the part will be reloaded, and confirm whether center holes are temporary process features or drawing-controlled features.

Steady Rest vs. Follow Rest

A steady rest supports the shaft at a fixed position; a follow rest moves with the cutting tool. The correct choice depends on where the unsupported span develops.

Official machine guidance describes steady rests as support for long or narrow shafts and instructs operators to adjust rollers without causing workpiece deflection. It also recommends rotating the part and checking it with an indicator after adjustment.

Rollers that are too loose provide little control; rollers that are too tight can create friction, marks, heat, or artificial bending. The supplier should identify support locations and explain how alignment will be rechecked after repositioning.

Machining Sequence for Controlling Long-Shaft Runout

Rough Turning, Stability Review, and Finish Turning

A sound process separates heavy stock removal from final geometry control. Rough turning establishes the shape and reveals how the blank responds as material is removed. The shaft can then be checked for bow and datum movement before heat treatment, semi-finishing, or grinding.

A typical route is:

Material review → datum preparation → rough turning → stability or heat-treatment step → straightness review → semi-finishing → finish turning or grinding → final inspection.

The exact route depends on material, geometry, hardness, and drawing requirements. Repeated chucking should be minimized or controlled through consistent center holes, journals, or other process datums.

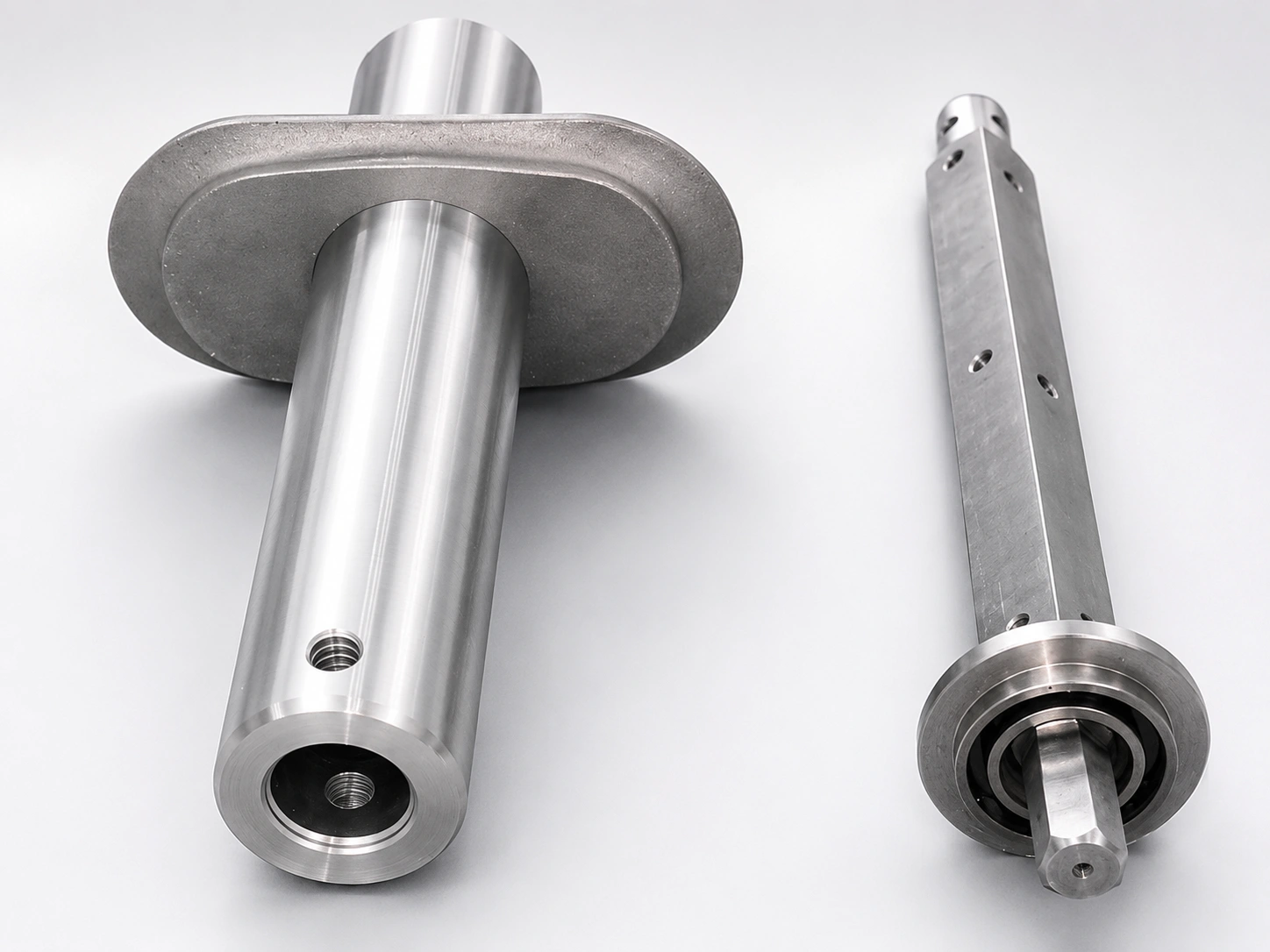

When Grinding Is Required—and When Turning Is Enough

Grinding may suit hardened journals, bearing fits, wear surfaces, or requirements involving surface condition, roundness, cylindricity, and relationships between diameters. It should not be added automatically. If finish turning meets the drawing, another setup may add cost and datum-transfer risk.

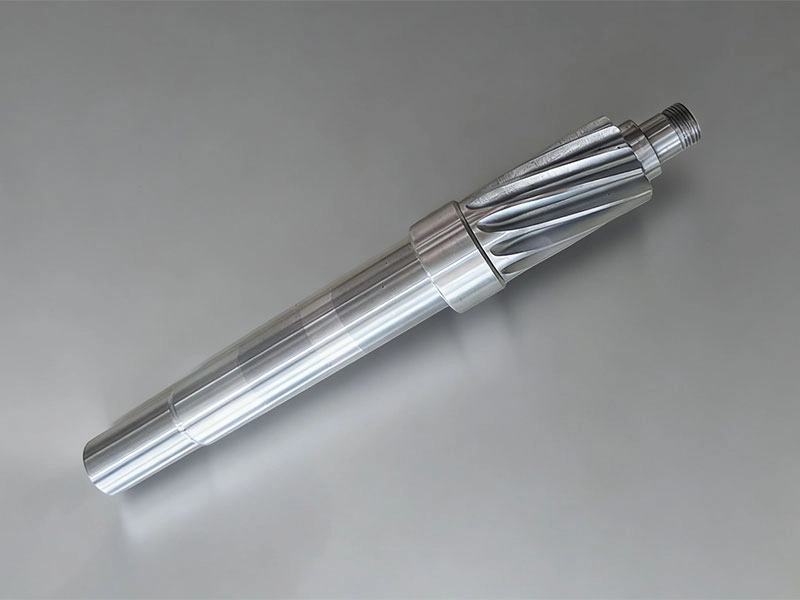

For ground shafts, confirm the grinding datum, support method, allowance, heat-treatment sequence, and equipment range. CK Metal Tech’s precision-turned shaft components with grinding use a published route combining precision turning, grinding, and quenching for custom alloy-steel or stainless-steel designs.

This product does not establish a four-meter grinding range. Maximum length, diameter, weight, and geometry must be verified for each drawing.

How to Inspect Runout and Straightness on a Long Shaft

Define the Datum Axis Before Selecting the Gauge

Circular runout, total runout, straightness, roundness, and coaxial relationships describe different conditions. A shaft may meet diameter tolerance while failing rotational function. The drawing should identify the functional datum axis and the characteristic that affects assembly.

The datum may come from center holes, two bearing journals, or another functional feature. Measuring one section does not prove the complete shaft meets total runout or straightness requirements. Reports should state the datum, support method, gauge positions, orientation, rotation method, and result.

Control Gravity Sag and Measurement Support

A long slender shaft can sag under its own weight during horizontal inspection. Between-centers measurement, rollers, V-blocks, and coordinate measurement systems may produce different readings if support positions and datums are not correlated.

Inspection equipment must match the workpiece envelope, weight, access, and required uncertainty. A CMM may suit some features, but it should not be assumed that every machine can accommodate a complete four-meter shaft. Supplier and buyer should agree on support spacing, orientation, rotation method, and measurement correlation.

CK Metal Tech has CMM, 2.5D measurement, metallographic, and hardness-testing resources, but the method for a full-length four-meter shaft must be confirmed against the equipment range.

Troubleshooting Long-Shaft Machining Defects

Runout near one end points first to the chuck, center hole, tailstock, or datum transfer. Maximum bow near the middle suggests stock straightness, support spacing, cutting force, or stress release. Gradual taper calls for checks of alignment, tool wear, machine geometry, and temperature. Periodic chatter may indicate poor rigidity, unsuitable speed, excessive tool overhang, or unstable rest contact.

If runout increases after heat treatment, verify straightness before removing final allowance. If grinding introduces new error, review grinding heat, support pressure, wheel condition, and datum correlation. Rework should not begin until the cause and remaining allowance are understood.

RFQ Checklist for Long Shafts Up to 4 Meters

Drawing, Material, and Application Data

Provide the current 2D drawing and 3D model, total and effective machining lengths, maximum and minimum diameters, estimated weight, material grade and condition, center holes, functional datums, and all stepped, threaded, tapered, keyed, or drilled features.

State circular runout, total runout, straightness, surface requirements, heat treatment, hardness, grinding scope, and inspection records. Application details such as speed, load, mating components, and environment help identify critical features. Include quantities and any photographs or reports from an existing defect.

Capacity, Inspection, and Packaging Questions

Ask the supplier to confirm usable between-centers length, maximum diameter and weight, lifting method, tailstock and rest configuration, and which turning, heat treatment, grinding, and inspection stages are internal or outsourced. Confirm grinding range rather than assuming it matches turning capacity.

The quotation should identify datum simulation, inspection supports, sample and production setups, and packaging. A shaft that passes inspection can still bend if supported incorrectly during storage or transport.

How to Choose a Long Shaft Machining Supplier

Evaluate the Complete Manufacturing Route

A suitable supplier should explain how material review, datum preparation, roughing, support, heat treatment, finishing, grinding, inspection, and packaging connect. The review should identify where straightness is checked, how setups are repeated, which features establish the final axis, and what happens if the shaft moves after heat treatment.

Buyers should confirm whether first articles and production parts use the same route, which records are available, and how abnormal results are handled. Confirming machine length without discussing weight, support, grinding, and inspection is not a complete feasibility review.

Relevant CK Metal Tech Capabilities

Zhejiang Chuangkai Mechanical and Electrical Technology Co., Ltd. connects machining with related processes through its integrated precision metal manufacturing capabilities. Buyers can also review about Zhejiang Chuangkai Mechanical and Electrical Technology Co., Ltd. when evaluating the supplier.

Confirmed resources include 18 precision CNC lathes, turning capacity for workpieces up to approximately four meters, internal and external cylindrical grinding, centerless grinding, thread rolling, tapping, and drilling. CK Metal Tech also holds IATF 16949 certification, while its website presents machining, stamping, sheet-metal fabrication, surface treatment, and assembly as connected services.

Maximum diameter, weight, grinding length, support arrangement, and achievable runout or straightness must still be verified for each project.

Conclusion

Controlling runout in long shaft machining requires more than a long-bed lathe. Material condition, datums, support pressure, cutting force, heat treatment, grinding, inspection, and transport must form one traceable route. The objective is to meet the drawing under an agreed measurement method, not to promise “zero runout.”

For a process review, submit the drawing, material, length, diameters, estimated weight, runout and straightness requirements, heat treatment, grinding scope, quantity, application, and any defect photographs or reports. Buyers can request a long shaft machining review from CK Metal Tech.

Frequently Asked Questions

How can runout be reduced when machining a long shaft?

Check raw-material straightness, datums, chuck and tailstock alignment, support location, cutting force, tool condition, and temperature. Separate roughing from finishing when stress release is likely, then inspect with the agreed datum and support method.

When is a steady rest required for long shaft turning?

A steady rest may be needed when the unsupported span permits deflection, vibration, or unstable size. The decision depends on diameter, length, weight, material, cutting force, geometry, and tolerance.

Should a long shaft be ground after CNC turning?

Grinding is appropriate when hardness, bearing fits, wear surfaces, roundness, cylindricity, or surface requirements cannot be met reliably by turning. It may be unnecessary when finish turning satisfies the drawing.

How is total runout measured on a four-meter shaft?

Define the datum axis, support arrangement, rotation method, and measurement locations. The method must consider gravity sag, equipment range, and correlation between supplier and customer inspection.

What information is needed for a long shaft machining quote?

Provide drawings, material condition, length, diameters, weight, datums, runout and straightness tolerances, surface requirements, heat treatment, grinding, features, quantities, application, inspection records, and packaging expectations.

Choosing between 3-axis and 4-axis CNC machining should begin with the drawing, not the machine list. A rotary axis can expose several sides of a component without manual flipping, which may reduce fixture changes, repeated probing, and datum transfer. It does not automatically make every part more accurate or less expensive. The correct route depends on feature direction, tool access, cross-face tolerances, workholding, quantity, and inspection.

3-Axis or 4-Axis CNC Machining? Quick Decision Guide

Map every machined feature by direction, then identify which features must remain related to the same functional datum.

The process should be reviewed against the actual part, not specified only as “4-axis required.” Buyers can examine CK Metal Tech’s precision CNC machining capabilities when a drawing needs process review.

Choose 3-Axis Machining for Accessible, Single-Direction Features

Three-axis machining remains practical for plates, brackets, flanges, and simpler housings whose critical features are accessible from the top or one additional flipped orientation. A qualified flip fixture and probing can make a second setup repeatable enough for many drawings.

It is often more economical for prototypes, low quantities, or changing designs. Buyers should still ask how many times the part will be clamped, which datum is used, and where cross-face dimensions will be inspected.

Choose 4-Axis Machining for Multi-Sided or Rotary Features

Four-axis machining becomes more relevant when holes, slots, flats, or mounting faces are distributed around a part, or when cylindrical features require controlled angular spacing. Rotating the workpiece can give the tool access to several directions while preserving one primary clamping relationship.

Autodesk identifies multi-sided, cylindrical, and wrapped geometry as common 4-axis applications and notes that less re-clamping can reduce cumulative setup error. Undercuts or compound angles may still require 5-axis machining or another process.

How Multiple Setups Create Datum Shift and Positional Error

Re-Clamping, Re-Zeroing, and Fixture Stack-Up

Every new setup introduces variables such as debris under a locator, fixture error, clamping deformation, probe variation, work offsets, and inconsistent seating. Their combined effect can appear in features produced from different setups.

A part may pass individual checks yet fail cross-face position, perpendicularity, or center distance. Multiple setups remain acceptable when tolerance and fixture repeatability support them. Clear datums, probing, and first-article checks reduce risk.

Why 4-Axis Machining Reduces—but Does Not Eliminate—Error

Keeping the part clamped while it indexes removes some manual handling and repeated zero-setting. Autodesk describes this as a reason 4-axis machining can reduce misalignment and cumulative tolerance error.

The rotary setup still has an error chain. The workpiece must match the rotation center; the fixture must resist eccentric loading; and indexing, offsets, heat, and clamping must be controlled. Autodesk support identifies an incorrect work-coordinate position relative to the rotary center as a cause of wrong 4-axis output.

Part Geometry and GD&T Requirements That Drive Axis Selection

Multi-Sided Holes, Slots, Flats, and Mounting Features

Strong 4-axis candidates often contain features on adjacent or opposite faces that share a critical relationship. Examples include mounting holes around a housing, flats indexed at specified angles, or several faces referenced to one bore.

The drawing should identify which features control assembly. Position, perpendicularity, parallelism, and profile across faces may justify one rotary setup. If these relationships are loose, a 3-axis flip fixture may be sufficient. Buyers should mark cross-face critical dimensions and ask how each will be produced and measured.

Cylindrical, Wrapped, and Repeating Angular Features

Radial holes, circumferential grooves, engraving, and angular patterns are natural rotary-axis applications. Indexed machining positions the workpiece at defined angles; wrapped or simultaneous motion may be needed for a continuous path around a cylinder.

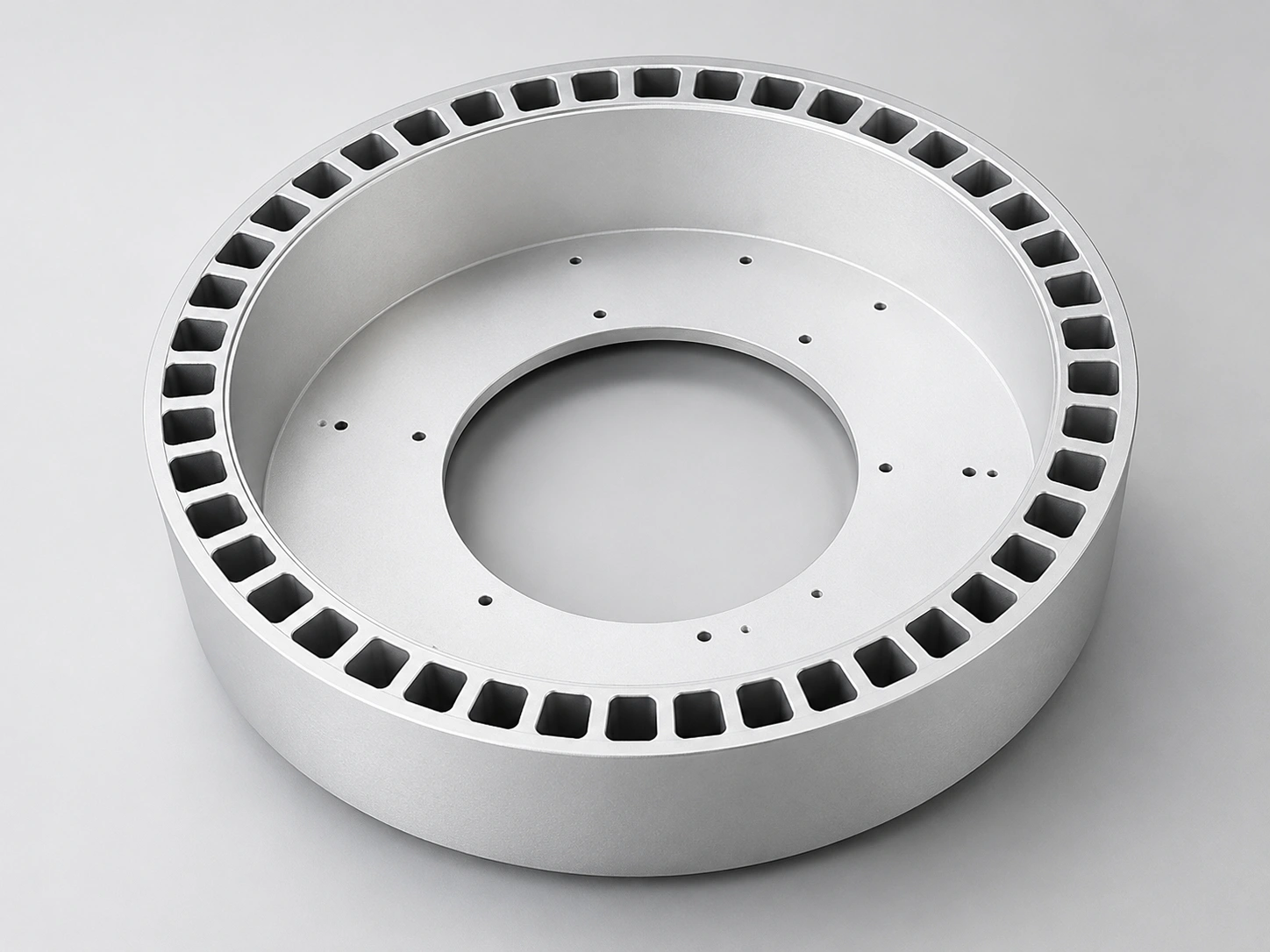

A relevant example is a four-axis CNC-machined motor housing made from high-strength aluminum alloy. Its published annular cooling grooves and mounting holes illustrate why rotary access may suit cylindrical and installation features. The page does not provide setup savings or tolerance comparisons.

Indexed 3+1 vs Simultaneous 4-Axis Machining

When Indexed 4-Axis Machining Is Sufficient

In indexed, or 3+1, machining, the rotary axis moves the part to a fixed angle and stops. Standard 3-axis toolpaths then machine that orientation. Autodesk separates this method from continuous rotary cutting.

It suits bolt patterns, radial holes, flats, pockets, and mounting features at known angles. It is generally easier to program and inspect than simultaneous motion. A quote should state indexed positions, feature groups, support, and remaining setups.

When Simultaneous Rotary Motion Is Required

Simultaneous 4-axis machining moves the rotary axis while cutting. It may fit helical grooves, wrapped contours, or free-form cylindrical surfaces that cannot be produced efficiently by fixed indexing. Autodesk notes that these workflows require rotary-orientation control, clearance planning, and collision avoidance.

The machine configuration, CAM strategy, postprocessor, rotary direction, and collision model must agree. Not every “4-axis” machine supports the same continuous strategies. Buyers should specify the required geometry rather than demand simultaneous motion by default.

3-Axis vs 4-Axis CNC Machining Cost

Compare Completed-Part Cost, Not Machine Hourly Rate

A 4-axis machine may have a higher hourly rate, but the completed part may cost less if it replaces fixtures, setups, transfers, and intermediate inspection. A simple component may cost more because of added programming, alignment, and workholding.

A fair comparison includes programming, fixtures, setup labor, cycle time, tooling, inspection, first-article approval, and rework risk. Separate one-time charges from recurring unit costs, and require the same finished scope.

Prototype, Pilot, and Repeat Production Decisions

A prototype may be produced efficiently in two 3-axis setups while the design is changing. After interfaces and quantities stabilize, a rotary fixture may become worthwhile for pilot or repeat production. The break point depends on fixture cost, setup time, inspection effort, geometry, and lifetime quantity.

Changing the route can alter datum flow, tool marks, burr location, and measurement. If prototype and production methods differ, critical characteristics need renewed pilot-run validation.

Common 4-Axis Machining Risks and How to Prevent Them

Rotary Centerline, Workholding, and Orientation Errors

If the programmed coordinate system does not match the actual rotary centerline, features can shift as the part turns. Fixture eccentricity may create changing tool engagement, vibration, and angular error. A reversed rotary direction or incorrect zero can mirror or misplace wrapped features.

Controls include probing the centerline, checking indicator readings, simulating the machine and fixture, verifying the postprocessor, and inspecting a first article at several angular positions.

Tool Access, Collision, Rigidity, and Part Deformation

Rotating the part changes the collision environment. A tool, holder, spindle, chuck, fixture, or tailstock that clears at zero degrees may interfere at another angle. Long tools may reduce rigidity and offset the benefit of fewer setups.

Thin-wall housings and long or eccentric parts can deform under rotary clamping. DFM should review clamping zones, support, tool reach, clearance, and material-removal sequence. Some features may remain safer as a separate 3-axis operation.

RFQ Checklist for a 3-Axis vs 4-Axis Process Review

Drawing, Datum, and Application Information

Provide the current 2D drawing and STEP file, material and condition, datum system, cross-face positional tolerances, angular features, cylindrical surfaces, surface requirements, and the features that control assembly. Include prototype quantity, annual demand, inspection documents, and packaging needs.

If an existing route is failing, attach its setup description, inspection report, and photographs of the nonconforming feature.

Setup, Fixture, and Inspection Questions

Ask each supplier to state:

• The proposed number of setups
• Whether the route is 3-axis, indexed 3+1, wrapped, or simultaneous 4-axis
• Which features remain in one clamping
• The rotary-axis direction and workholding concept
• Whether auxiliary support is needed
• How cross-face GD&T will be inspected
• Whether samples and production use the same route
• Which fixture and first-article charges are one-time costs

How to Choose a 3-Axis and 4-Axis CNC Machining Supplier

Verify the Process Plan, Not Only the Machine List

A machine list does not show whether a supplier can select the correct route. A useful review identifies feature directions, datum flow, tool access, fixture risk, and inspection before quotation.

Ask for a simplified setup map and the reason behind the axis selection. The supplier should recommend 3-axis machining when it is more direct and 4-axis machining when reduced handling creates an advantage. Confirm rotary-centerline and first-article controls.

Relevant CK Metal Tech Capabilities

Zhejiang Chuangkai Mechanical and Electrical Technology Co., Ltd., also known as CK Metal Tech, supports drawing-based projects through its integrated precision metal manufacturing capabilities. Confirmed resources include eight 4-axis CNC machines, four CNC milling machines, and 4-axis capacity for larger workpieces up to approximately 1.8 meters, subject to geometry, diameter, weight, fixture, and tool-access requirements.

The company also has CMM and 2.5D inspection resources and holds IATF 16949 certification. CK Metal Tech’s machining scope includes milling, turning, grinding, drilling, and related operations. Specific rotary mode, work envelope, positional capability, and inspection method should be verified against each drawing.

Conclusion

The decision between 3-axis and 4-axis CNC machining should follow three steps: map the required machining directions, identify cross-face dimensions that depend on a common datum, and compare complete setup, fixture, programming, and inspection cost. A rotary axis can reduce re-clamping risk, but only when the centerline, workholding, program, and inspection plan are controlled.

Buyers can request a 3-axis vs 4-axis process review by submitting the drawing, STEP file, material, datum system, cross-face tolerances, circular features, quantity, and any existing setup or inspection report.

Frequently Asked Questions

Does 4-axis CNC machining always improve accuracy?

No. It can reduce manual re-clamping and datum transfer, but accuracy still depends on the rotary centerline, fixture, machine condition, work offsets, toolpath, heat, and inspection method.

When is 3-axis machining more cost-effective?

It is often more economical when features are accessible from one or two directions, quantities are low, the design is changing, and cross-face tolerances can be controlled with a direct fixture.

What is the difference between 3+1 and simultaneous 4-axis machining?

In 3+1 machining, the rotary axis positions the part and remains stationary during cutting. In simultaneous machining, the rotary axis moves continuously while the tool follows the programmed path.

Can a 3-axis machine produce multi-sided parts?

Yes. The part can be flipped or moved to another fixture. Suitability depends on setup count, fixture repeatability, cross-face tolerances, quantity, and datum-transfer risk.

What information is needed for a 4-axis CNC machining quote?

Provide drawings, a STEP file, material, datums, cross-face GD&T, radial or circular features, surface requirements, quantities, application details, and inspection expectations.

Choosing between Swiss machining and conventional CNC turning becomes difficult when a drawing contains a small diameter, a long unsupported section, tight runout requirements, or secondary features. The route depends on support, cutting length, stock condition, feature complexity, tolerance, and quantity. This guide helps engineers and sourcing teams evaluate shafts, pins, sleeves, connectors, and other slender parts without relying on a fixed rule.

Swiss Machining or CNC Turning? Quick Selection Guide

The first decision should come from geometry and process risk, not the assumption that a Swiss-type machine is more accurate. Buyers can review CK Metal Tech’s precision CNC turning and Swiss machining capabilities when both routes need evaluation.

Choose Swiss Machining for Small-Diameter, Slender, Multi-Feature Parts

Swiss machining is commonly considered when a component bends or vibrates as the tool moves away from the main clamping point. In guide-bushing operation, the bar is supported close to the cutting area while the headstock feeds material through the guide. This can reduce unsupported length during cutting and suit long precision pins, narrow stepped shafts, and delicate sections.

It is also useful when turning, cross drilling, milling, threading, or back working can be combined. Buyers must verify the actual machine configuration. A Swiss-type lathe may run with or without a guide bushing, while live tooling, sub-spindle functions, and usable bar sizes vary. Published specifications confirm that convertible Swiss lathes can support both guide-bushing and chucker-style operation.

Choose Conventional CNC Turning for Shorter, Larger, or Simpler Parts

Conventional CNC turning remains practical for rigid parts, simple outside profiles, larger diameters, lower quantities, or drawings likely to change. A short pin with one diameter and a basic thread may not justify Swiss setup.

A fixed-headstock lathe can also produce slender parts using tailstock support, steady rests, staged cutting, and low-force tooling. The question is whether those measures create stable parts. Repeated corrections, several setups, or inconsistent runout justify reviewing Swiss machining. If the part remains stable, changing equipment may add cost without improving it.

Why Workpiece Support Changes Accuracy on Slender Parts

Guide-Bushing Support vs Fixed-Headstock Workholding

A slender shaft deflects when radial cutting force acts on an unsupported section. The result can be taper, chatter, changing diameter, poor straightness, or an inconsistent surface. Risk increases when the weakest section is far from the chuck or contains residual stress.

A guide bushing reduces the distance between tool and support, but it does not remove tool wear, heat, stock variation, clearance, or sequence problems. Conventional turning may remain suitable when a tailstock or steady rest supports the part without blocking features. Buyers should ask how the workpiece will be held and whether production uses the same setup.

Bar Stock Straightness, Diameter Variation, and Guide-Bushing Fit

In guide-bushing machining, bar diameter, roundness, straightness, and surface condition affect feeding and contact. Excessive clearance can weaken support; insufficient clearance can cause friction, feed problems, or surface marks.

Stock requirements depend on the machine, material, geometry, and operating mode. Some convertible Swiss lathes can run without a guide bushing and use drawn bar for shorter parts, while guide-bushing work may need more controlled stock. Tsugami’s SS20 information distinguishes traditional guide-bushing operation from optional chucker operation, showing why an RFQ should state material condition rather than only the alloy grade.

How Part Geometry and Tolerances Determine the Right Turning Process

Evaluate Diameter, Effective Length, and Length-to-Diameter Ratio Together

Length-to-diameter ratio is useful, but no universal cutoff fits every part. The critical length may be the machined section rather than overall length. On a stepped shaft, the smallest diameter or longest weak section may govern deflection.

Review minimum diameter, unsupported cutting length, transition radii, wall thickness, material stiffness, and tool access together. A hollow sleeve can behave differently from a solid pin with the same external dimensions. Mark datums and sections where bending or taper would affect assembly, then compare support, cutting sequence, and possible grinding.

Review Runout, Straightness, and Surface Finish

A diameter tolerance does not fully define shaft performance. Runout affects rotating interfaces, straightness affects alignment, and surface condition can influence bearings, seals, or sliding contact.

Tie each requirement to function and state how it should be measured. Turning may create the finished feature directly, but some components require cylindrical or centerless grinding after turning or heat treatment. CK Metal Tech’s precision-turned shaft components with grinding illustrate a route combining precision turning, grinding, and quenching for custom shaft designs used in machinery and transmission applications.

Check Cross Holes, Flats, Grooves, Threads, and Back Working

Small parts often become expensive because they need several operations. Cross holes, flats, slots, threads, end drilling, and cutoff-side features may require secondary handling.

A suitably configured Swiss machine may complete several features in one cycle using live tools and a sub-spindle. That can reduce transfers and datum changes, but deburring, grinding, or heat treatment may still control cost. Ask the supplier to identify each operation, datum, and inspection stage. Compare completed-part routes, not cycle times alone.

Swiss Machining vs CNC Turning Cost and Production Volume

Compare Setup Cost With Completed-Part Cost

Swiss machining may require bar preparation, guide-bushing selection, more tools, and detailed programming. Conventional turning may have lower setup cost but require separate drilling, milling, deburring, or back working.

A fair comparison includes material, setup, cycle time, tooling, remnant loss, secondary work, grinding, heat treatment, finishing, inspection, and packaging. Confirm whether samples and production use the same process. A low prototype price offers little value if production later requires a new route.

Choose the Process Across Prototype, Pilot, and Repeat Production

A prototype may use conventional turning while the design changes. After geometry and demand stabilize, Swiss machining may become attractive if it combines operations and reduces handling. A complex Swiss setup may still be uneconomical for low repeat demand.

Compare low, expected, and high quantity scenarios, separating one-time from recurring costs. Consider whether changing the process affects burr location, tool marks, datums, or capability. A staged plan—design validation, process review, pilot batch, then production approval—reduces risk.

Common Turning Problems and How to Prevent Them

Taper, Chatter, Deflection, and Poor Straightness

These defects do not prove that the wrong machine was selected. Taper may result from deflection, wear, heat, or alignment. Chatter may come from insufficient rigidity, unsuitable tooling, aggressive parameters, or excessive unsupported length. Poor straightness may begin in the bar, residual stress, heat treatment, or cutting sequence.

Give the supplier measurements showing where deviation occurs, the inspection datum, batch information, material lot, and whether the issue appears gradually or randomly. Persistent instability after support, tooling, and parameters are reviewed may justify Swiss machining or grinding.

Guide-Bushing Marks, Bar Variation, Burrs, and Remnant Waste

Swiss machining has its own risks. Bushing contact may mark unsuitable bar surfaces, cross holes may leave assembly-sensitive burrs, and remnants can affect short-run cost.

Before approval, define cosmetic surfaces, burr limits, edge breaks, cutoff condition, and packaging. Confirm who supplies the bar and which stock condition is required. These details prevent a dimensionally acceptable part from failing assembly or handling requirements.

RFQ Checklist for Small Shafts, Pins, and Slender Parts

A useful quotation includes the current 2D drawing and STEP file, material and condition, total and effective cutting lengths, maximum and minimum diameters, dimensional and geometric tolerances, surface requirements, features, heat treatment, finish, and quantities.

Also define inspection records, sample quantity, annual demand, application, and packaging. Long parts may need protection against bending in transport. Ask whether grinding, thread rolling, deburring, heat treatment, and finishing are included, and identify assumptions about stock or outsourced operations.

How to Choose a Swiss Machining and CNC Turning Supplier

A supplier should explain why the process fits. Ask about machine range, operating mode, workholding, live tooling, back working, secondary processes, inspection, and controls for tool wear and stock variation. Do not select a supplier solely because “Swiss machining” appears on a capability list.

Zhejiang Chuangkai Mechanical and Electrical Technology Co., Ltd. supports turned-part projects with one five-axis Swiss-type lathe, 18 precision CNC lathes, internal and external cylindrical grinding, centerless grinding, thread rolling, tapping, and drilling resources. Its integrated precision metal manufacturing capabilities cover connected manufacturing and assembly processes. Buyers can also review about Zhejiang Chuangkai Mechanical and Electrical Technology Co., Ltd. when evaluating its background. CK Metal Tech lists CNC turning and Swiss machining among its services and holds IATF 16949 certification.

Conclusion

Swiss machining is often suitable for small-diameter, slender, multi-feature parts when support near the cutting zone and combined operations reduce quality and handling risk. Conventional CNC turning remains practical for shorter, rigid, simpler, or lower-volume parts. The choice should follow the completed manufacturing route, not a fixed diameter, ratio, or quantity.

For a process review, submit the drawing, material, diameters, effective length, critical tolerances, features, heat treatment, target quantity, application, and any defect photographs or samples. Buyers can request a shaft and pin machining review from CK Metal Tech.

Frequently Asked Questions

What is the main difference between Swiss machining and CNC turning?

Swiss machining can support bar stock close to the cutting point with a guide bushing, while conventional turning typically holds the workpiece from a fixed headstock. Some Swiss-type machines can also run without a guide bushing.

When should Swiss machining be used for a slender shaft?

Consider it when deflection, chatter, taper, or several secondary features make conventional turning unstable or costly. Review minimum diameter, effective length, material, tolerances, features, and quantity instead of relying on one ratio.

Is Swiss machining more expensive than conventional CNC turning?

Setup may be more involved, but combining turning, drilling, milling, and back working can lower completed-part cost in repeat production. Simple or low-volume parts may remain less expensive on a conventional lathe.

Can a conventional CNC lathe machine long precision pins?

Yes, depending on diameter, material, tolerance, support, tooling, and cutting strategy. Persistent deflection or excessive secondary handling may favor Swiss machining.

What information is needed for a Swiss machining quote?

Provide drawings, material and condition, diameters, effective length, tolerances, runout, straightness, surface requirements, features, heat treatment, finish, inspection scope, packaging, and quantities.

Choosing between CNC machining and metal stamping is not simply a unit-price decision. The real question is whether a part’s geometry, design maturity, expected volume, and lifetime demand justify a dedicated stamping die. CNC machining is often safer for prototypes, uncertain demand, solid bar or block geometry, and parts likely to change. Metal stamping becomes more attractive when a stable sheet-metal design will repeat long enough to spread tooling investment across finished parts. In some cases, the lowest-risk answer is a hybrid route: stamp the base geometry, then machine only the critical features.

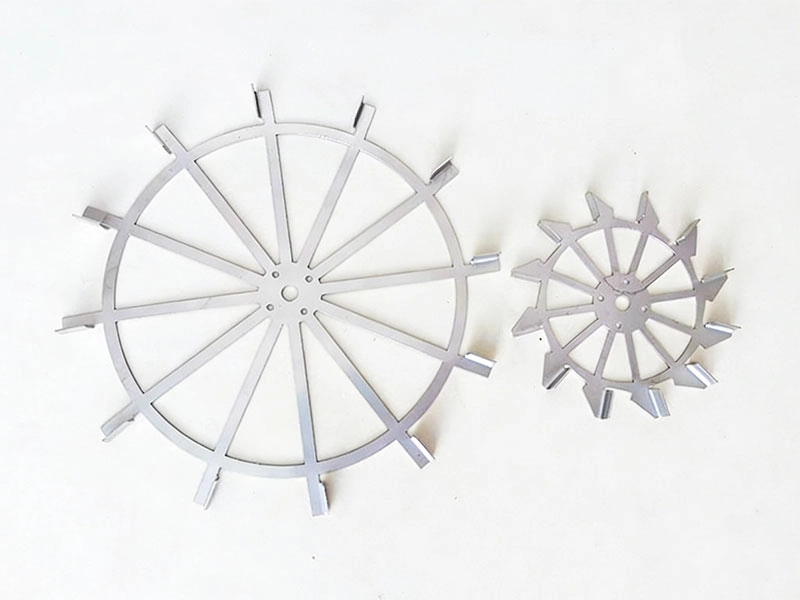

CNC Machining, Metal Stamping, or a Hybrid Process?

Keep CNC Machining When Volume or Design Is Uncertain

CNC machining is usually appropriate while a project is proving function, fit, demand, or final geometry. It accepts revisions without a dedicated production die and can create complex features from plate, bar, or block stock. This makes precision CNC machining services relevant for prototypes, pilot runs, replacement parts, and repeat orders whose volumes do not yet support tooling amortization.

Confirm programming, fixtures, material yield, batch pricing, inspection, and revision costs. Machining may become expensive when every part requires long cycle time or removes much of the starting material. However, it may remain correct when the geometry cannot be formed from sheet, regardless of volume.

Invest in Stamping Tooling When Geometry, Demand, and Design Are Stable

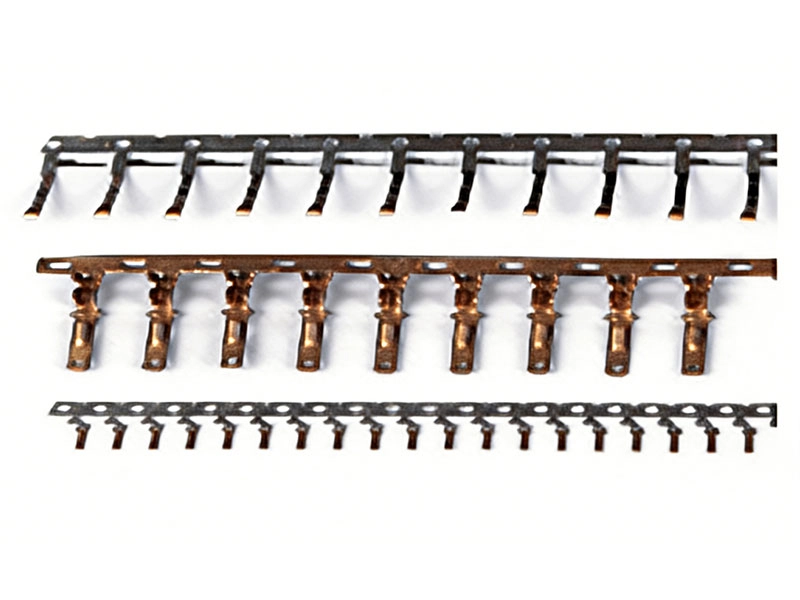

Production tooling becomes practical when a component can be blanked, pierced, bent, formed, or drawn from flat stock and is unlikely to change. Dies carry an upfront cost, but repeat production can spread that investment across the program. Material behavior, tolerances, and expected wear affect the business case. Late design changes may require substantial die rework, so functional testing and drawing approval should precede tooling release.

Before approving precision metal stamping and tooling services, request a manufacturability review covering material, thickness, forming feasibility, critical dimensions, secondary operations, lifetime quantity, and revision status. No universal production threshold proves that stamping will pay off.

Use a Hybrid Process When Only Critical Features Need Machining

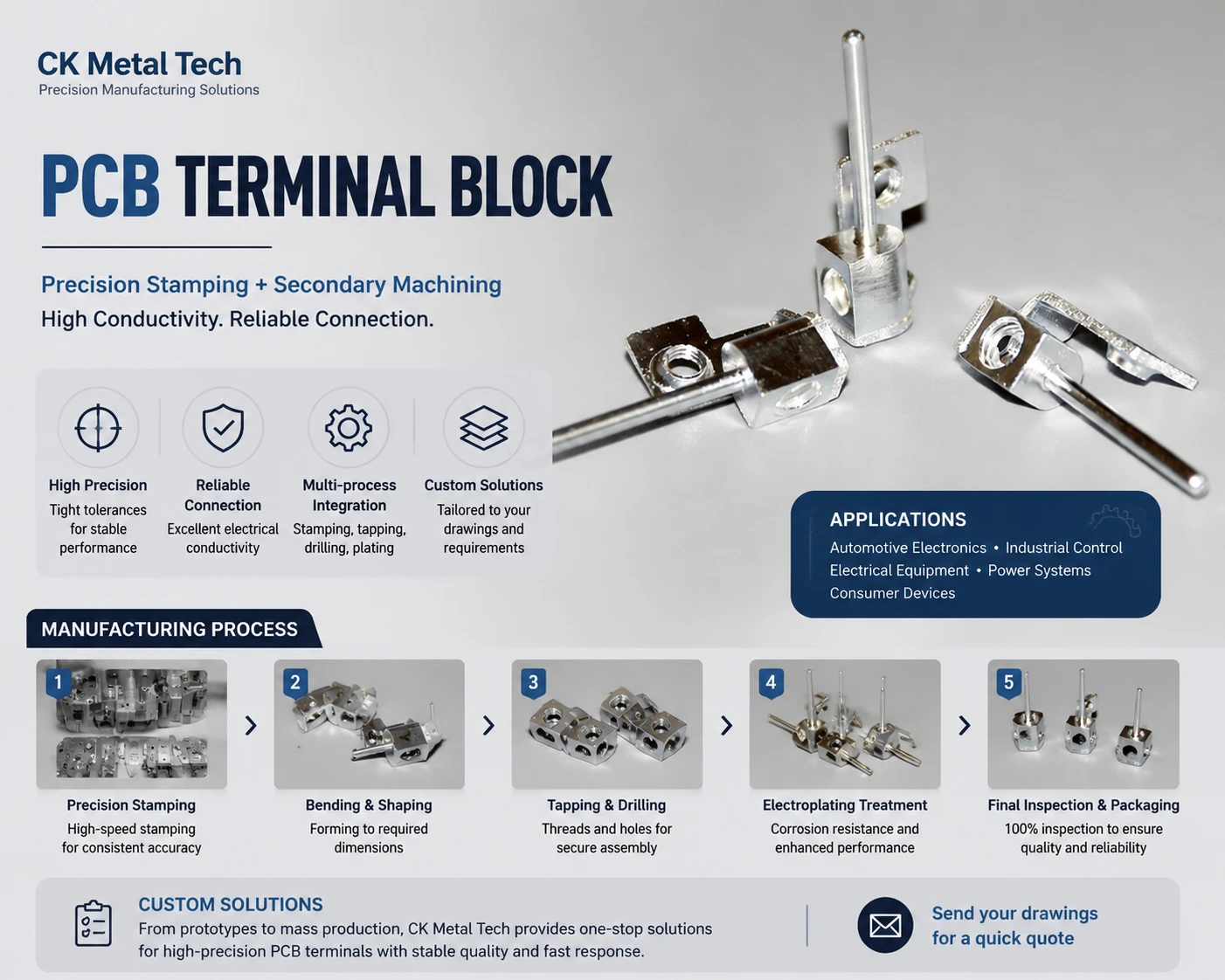

The processes are not always competing choices. A stamped blank may create the outer profile, bends, and formed features, while tapping, reaming, grinding, or milling completes a critical interface.

The route works best when the stamped part provides repeatable locating datums and the secondary cycle is short. It is less attractive when forming distortion makes fixturing unstable or most features still require machining. A stamped PCB terminal block with secondary machining demonstrates the principle: its published route combines precision stamping, bending, tapping, drilling, and electroplating.

Why Stamping Tooling Does Not Always Pay Off

Account for Lifetime Demand, Changes, and Hidden Operations

A short product lifecycle, frequent customer revisions, or uncertain demand may not consume enough parts to recover the die investment. Model low, expected, and high lifetime quantities instead of relying on one optimistic annual forecast.

The stamped part’s completed cost must include deburring, tapping, machining, cleaning, plating, coating, inspection, assembly, packaging, tool maintenance, and possible modification. The quotation should state whether trials, sample inspection, revision rounds, sharpening, spares, storage, and maintenance are included. Changes after die construction begins can add cost and delay, making formal tooling release an essential control.

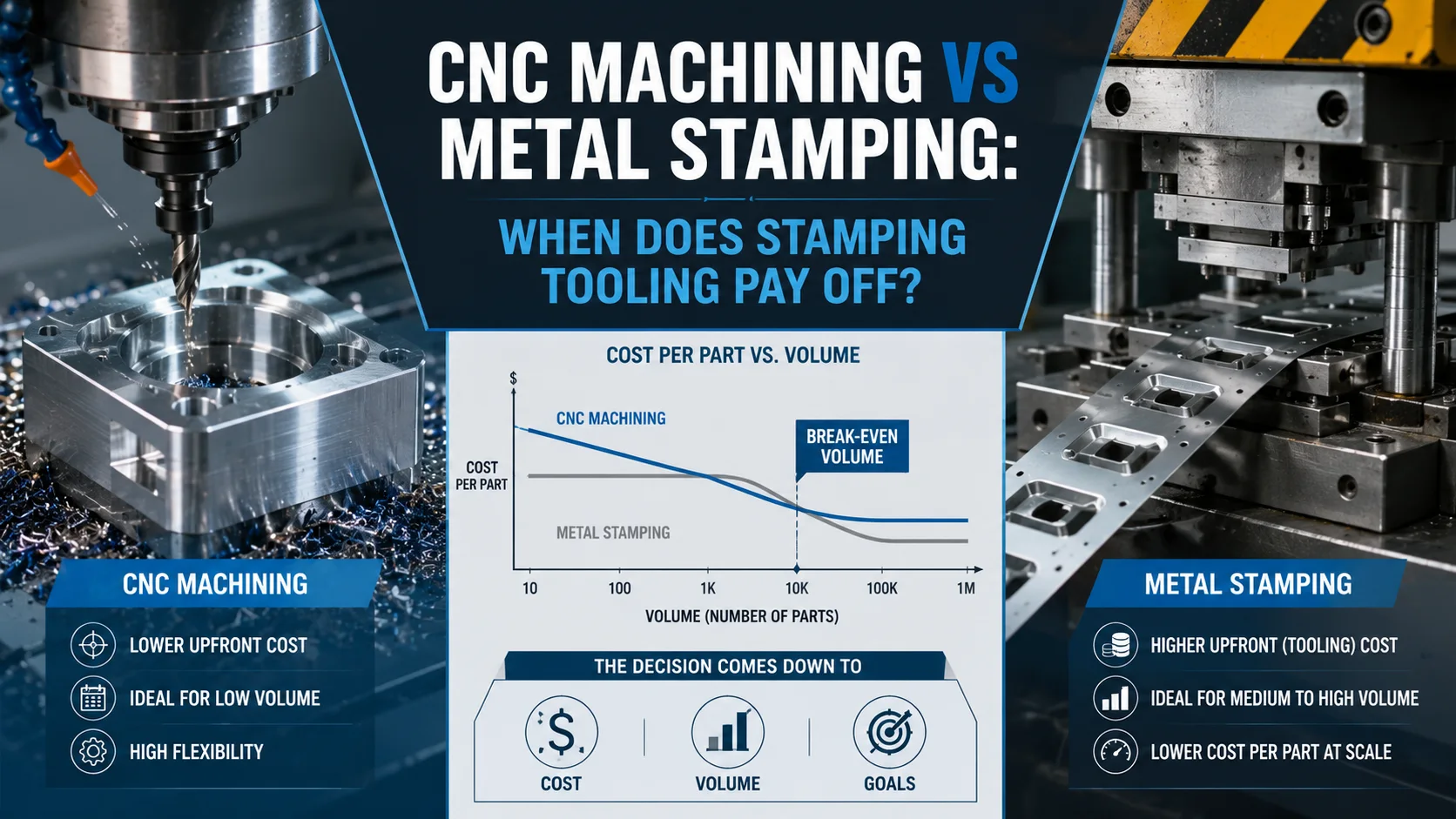

How to Calculate the Stamping Tooling Break-Even Point

Compare two fully defined manufacturing routes:

Break-even quantity = tooling investment ÷ (completed CNC unit cost − completed stamping unit cost)

“Completed” matters. CNC cost should include material, setup, machining, tools, inspection, finishing, and packaging. Stamping cost should include die design, trials, press production, material utilization, maintenance, secondary operations, inspection, finishing, and packaging.

If a stamped blank still needs CNC bores and threads, use the finished hybrid-part cost, not the press-only price. Test several volume scenarios. A small unit-cost difference creates a long payback period; a larger difference may justify tooling sooner.

Ask every bidder to quote the same drawing revision, material, quantity bands, inspection scope, finish, packaging, and tool ownership terms. Otherwise, quotations may cover different work. The right answer to “What production volume justifies stamping tooling?” is a project-specific break-even range, not an industry-wide number.

Is the CNC-Machined Part Suitable for Metal Stamping?

First determine whether the geometry can be produced from sheet or coil. Stamping cuts and forms flat stock, while machining removes material from a solid workpiece. Thick sections, enclosed features, or complex multi-plane geometry may not convert directly.

Separate Stampable Features From Critical Machined Features

Start with the stock form. Could the function use consistent sheet thickness? Review bends, draw depth, hole-to-edge relationships, springback, and burr-sensitive surfaces.

Classify drawing features into three groups: suitable for stamping, possible after a design or tolerance change, and still requiring machining. Precision bores, deep threads, sealing faces, bearing locations, and datum surfaces may remain secondary operations. Confirm locating datums, machining allowance, and how forming variation will affect the final setup. Secondary CNC machining is commonly used for high-precision bores and mounting faces on stamped components.

How to Move From a CNC Prototype to Stamped Production

A CNC prototype validates function, but not necessarily stampability. Its drawing may contain sharp corners, variable thickness, or tight tolerances created around machining rather than forming.

Freeze Requirements, Then Use DFM and First-Article Approval

Before hard tooling, confirm material, thickness, interfaces, critical dimensions, finish, and drawing revision. Projects still undergoing functional or customer-interface changes should remain in a flexible process until major risks are resolved.

A controlled transition follows this sequence: prototype validation, stamping DFM, production drawing revision, tool design, tool trial, sample inspection, correction, first-article approval, pilot run, and production release. Sample review should include burrs, cracks, wrinkles, springback, plating condition, appearance, and assembly performance, not dimensions alone.

What Buyers Should Include in a CNC-to-Stamping RFQ

An accurate quotation requires the current 2D drawing and STEP file, material and stock form, thickness, annual and lifetime quantities, current process, critical tolerances, finishing, secondary machining, inspection, packaging, and known changes.

Also compare tool ownership, storage, maintenance, sharpening, spare inserts, modification charges, transfer rights, and end-of-program handling. A low die price may create later cost if engineering changes or production support are excluded.

Choosing a Supplier for the CNC-to-Stamping Transition

A qualified supplier should evaluate both routes. Verify whether tooling is built internally, whether trial and production teams share responsibility, whether secondary work can be coordinated, and how first articles, revisions, tool wear, and corrective actions are controlled.

Zhejiang Chuangkai Mechanical and Electrical Technology Co., Ltd., also known as CK Metal Tech, combines tooling, metal stamping, CNC machining, surface treatment, inspection, and assembly within its integrated precision metal manufacturing scope. Its confirmed resources include 8 four-axis CNC machines, 18 precision CNC lathes, and Swiss-type machining capability. CK Metal Tech also produces progressive, drawing, and compound tooling and holds IATF 16949 certification. This supports full-CNC, full-stamping, and hybrid route reviews.

Conclusion

Stamping tooling pays off when the part is genuinely stampable, the design is stable, and lifetime savings exceed tooling, maintenance, validation, secondary processing, and revision risk. CNC machining remains useful for prototypes, changing designs, solid geometries, and precision features. A hybrid process may be the most balanced route when the base shape can be stamped but functional interfaces still require machining.

For a project review, prepare the latest drawing, STEP file, material, target quantity, program life, critical dimensions, secondary operations, and quality requirements. Those details allow CK Metal Tech to request a CNC-to-stamping DFM review and compare feasible routes without requiring an immediate tooling commitment.

FAQs

What production volume makes metal stamping cheaper than CNC machining?

There is no universal quantity. Calculate break-even from the actual tooling investment and the difference between completed CNC and stamping unit costs, including maintenance, secondary work, finishing, inspection, and design-change risk.

Can a CNC-machined part be converted directly to metal stamping?

Sometimes, but usually not without DFM. Solid sections, variable thickness, deep features, or tight tolerances may require redesign before tooling begins.

Do stamped parts still need CNC machining?

They may. Threads, precision bores, bearing fits, sealing faces, datum surfaces, or tight mounting features can require secondary machining, drilling, tapping, reaming, or grinding.

How can a buyer tell whether stamping tooling will pay off?

Confirm stampability, then compare completed lifecycle costs under low, expected, and high demand scenarios. The case is stronger when the design is frozen and hidden operations are included in both quotations.

What should be checked when choosing a stamping tooling manufacturer?

Check in-house tool design, DFM support, trials, first-article procedures, revision control, secondary machining, inspection, tool maintenance, ownership terms, and production quality management.
